SPECIFICATION

Model	4010	4012	4015	4020	5015	5020	5025	5030
Aperture Passing Width(mm)	400				500
Aperture Passing Height(mm)	100	120	150	200	150	200	250	300
Belt Width(mm)	370				470
Sensitivity for Fe(Φmm)	≥0.7	≥0.8	≥1.0	≥1.2	≥1.0	≥1.2	≥1.5	≥2.0
Sensitivity for Non-Fe(Φmm)	≥1.2	≥1.3	≥1.7	≥2.2	≥1.7	≥2.2	≥2.7	≥3.2
Sensitivity for Sus(Φmm)	≥1.3	≥1.5	≥2.0	≥2.5	≥2.0	≥2.5	≥3.0	≥3.5
Control Panel	Knob and Button Control
Construction Material	Stainless Steel 304
Belt Type	Food Grade Belt
Power Supply	AC110～220V±10%, single phase, 50/60 Hz
Working Temperature	-10 ℃ ～40℃
Conveyor Speed	Standard: 28 Meters/Minute Optional: Adjustable Speed(extra charge)

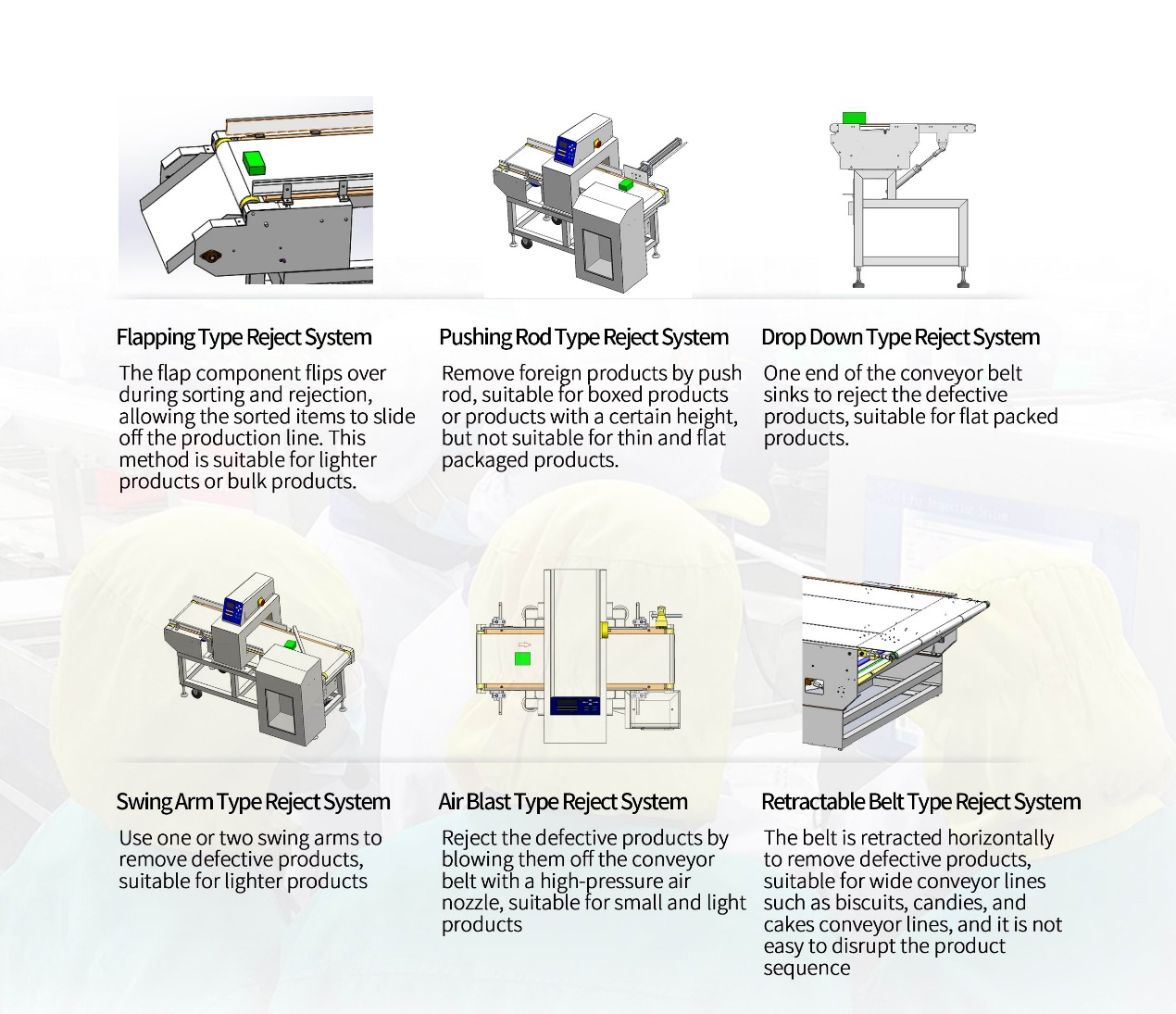

Alarm Pattern	Standard: Alarm Buzzer and Belt Stop Optional: Reject System(extra charge)

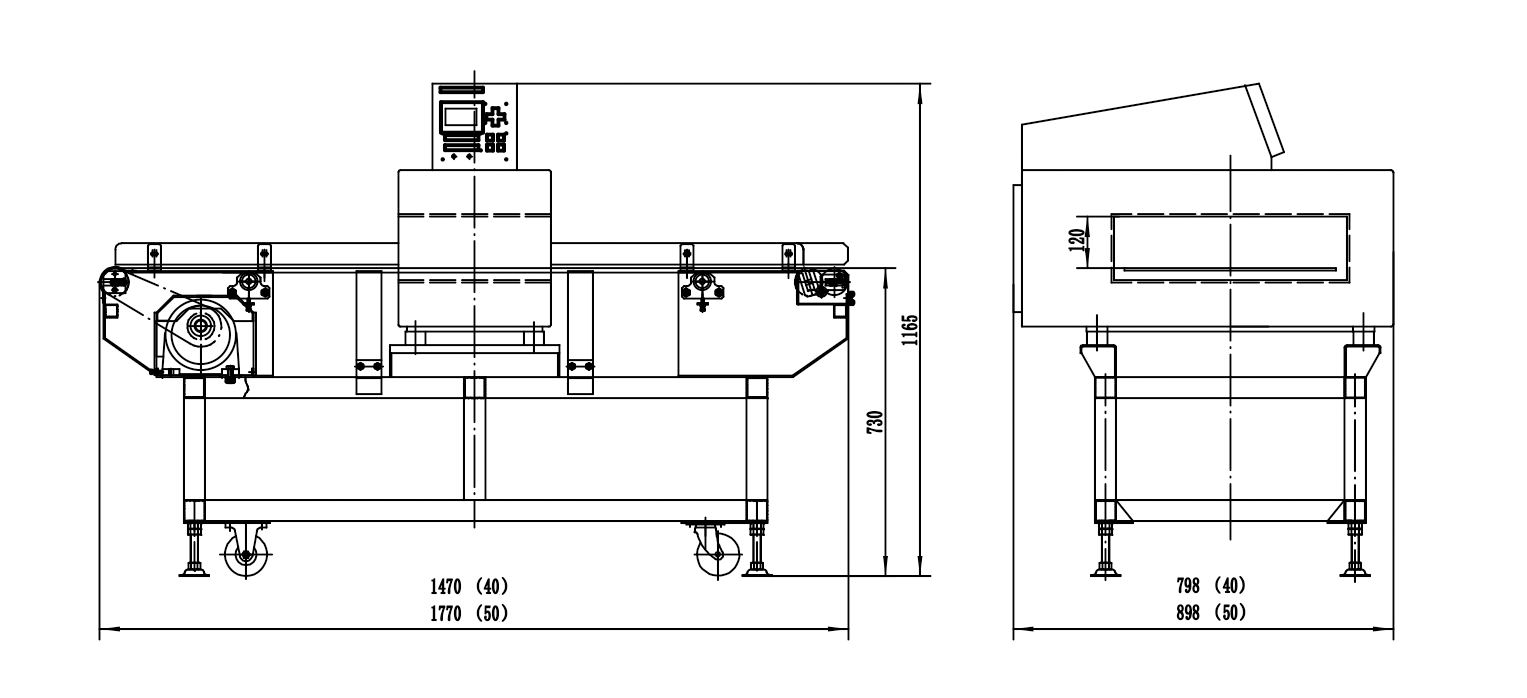

Note: 1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc. 2.Other special aperture size can be customized with extra charge FEATURES ? Compact Frame Design for Limited Space ? Two Channels Signal Display ? Knob and Button Control ? Phase Adjustment Function ? One-Touch Start and Stop DIMENSION DRAWING
