SPECIFICATION
Model
4010
4012
4015
4020
5015
5020
5025
5030
Aperture Passing Width(mm)
400
500
Aperture Passing Height(mm)
100
120
150
200
150
200
250
300
Belt Width(mm)
370
470
Sensitivity for Fe(Φmm)
≥0.7
≥0.8
≥1.0
≥1.2
≥1.0
≥1.2
≥1.5
≥2.0
Sensitivity for Non-Fe(Φmm)
≥1.2
≥1.3
≥1.7
≥2.2
≥1.7
≥2.2
≥2.7
≥3.2
Sensitivity for Sus(Φmm)
≥1.3
≥1.5
≥2.0
≥2.5
≥2.0
≥2.5
≥3.0
≥3.5
Control Panel
Knob and Button Control
Construction Material
Stainless Steel 304
Belt Type
Food Grade Belt
Power Supply
AC110～220V±10%, single phase, 50/60 Hz
Working Temperature
-10 ℃ ～40℃
Conveyor Speed
Standard: 28 Meters/Minute
Alarm Pattern
Standard: Alarm Buzzer and Belt Stop
Note:
Optional: Adjustable Speed(extra charge)
Optional: Reject System(extra charge)
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.
2.Other special aperture size can be customized with extra charge
FEATURES
? Two Channels Signal Display
? Knob and Button Control
? Phase Adjustment Function
? One-Touch Start and Stop

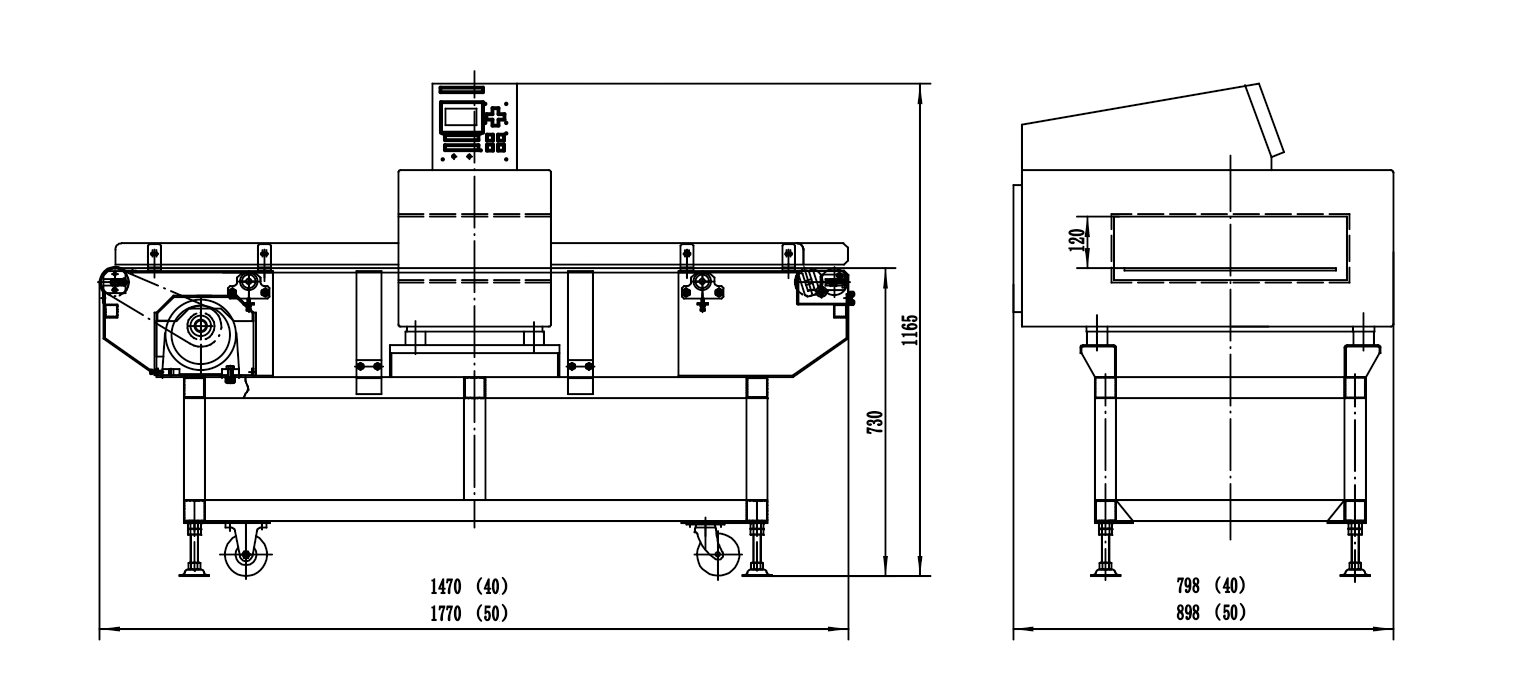

DIMENSION DRAWING

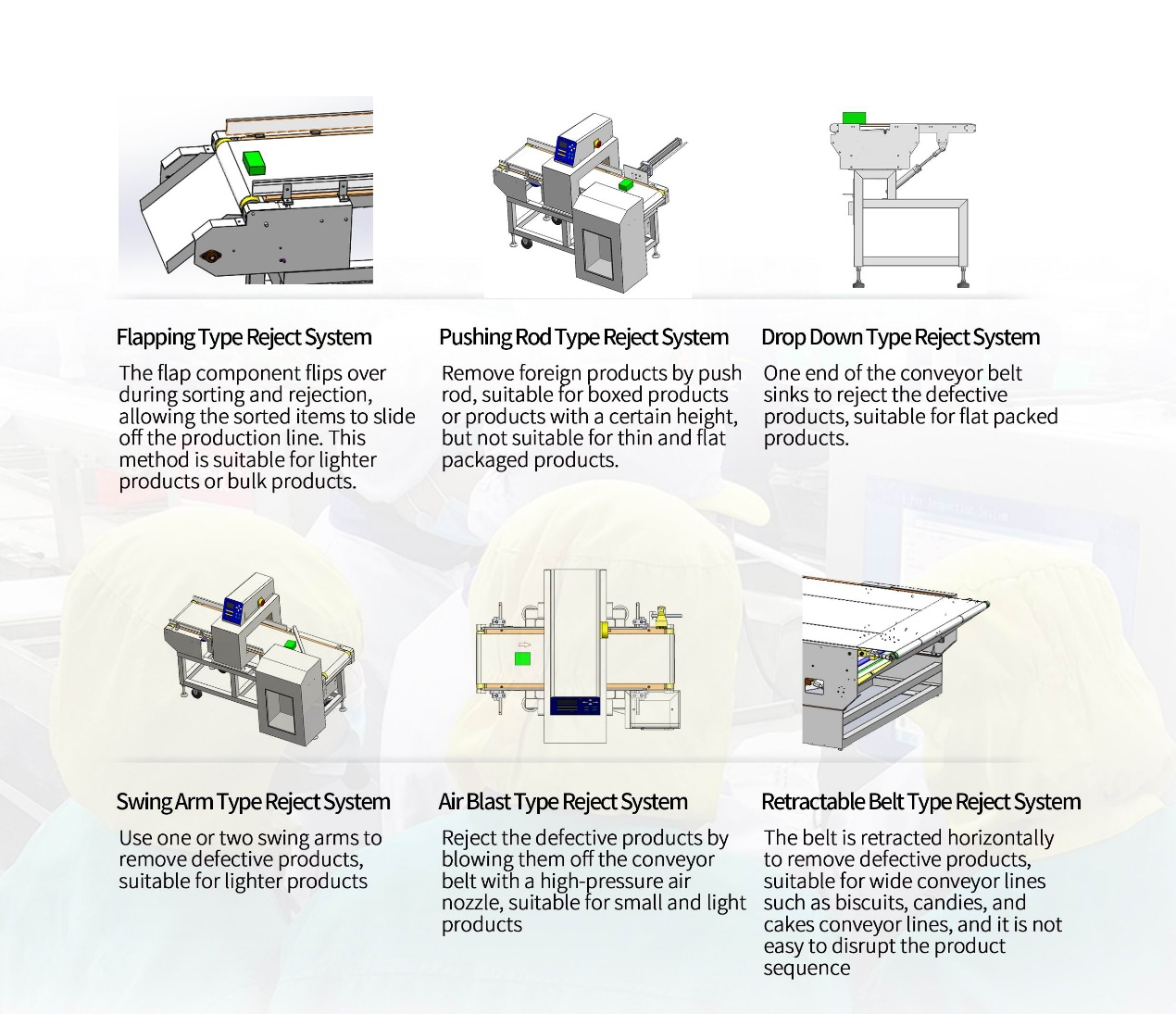

DIFFERENT TYPES OF REJECT SYSTEM

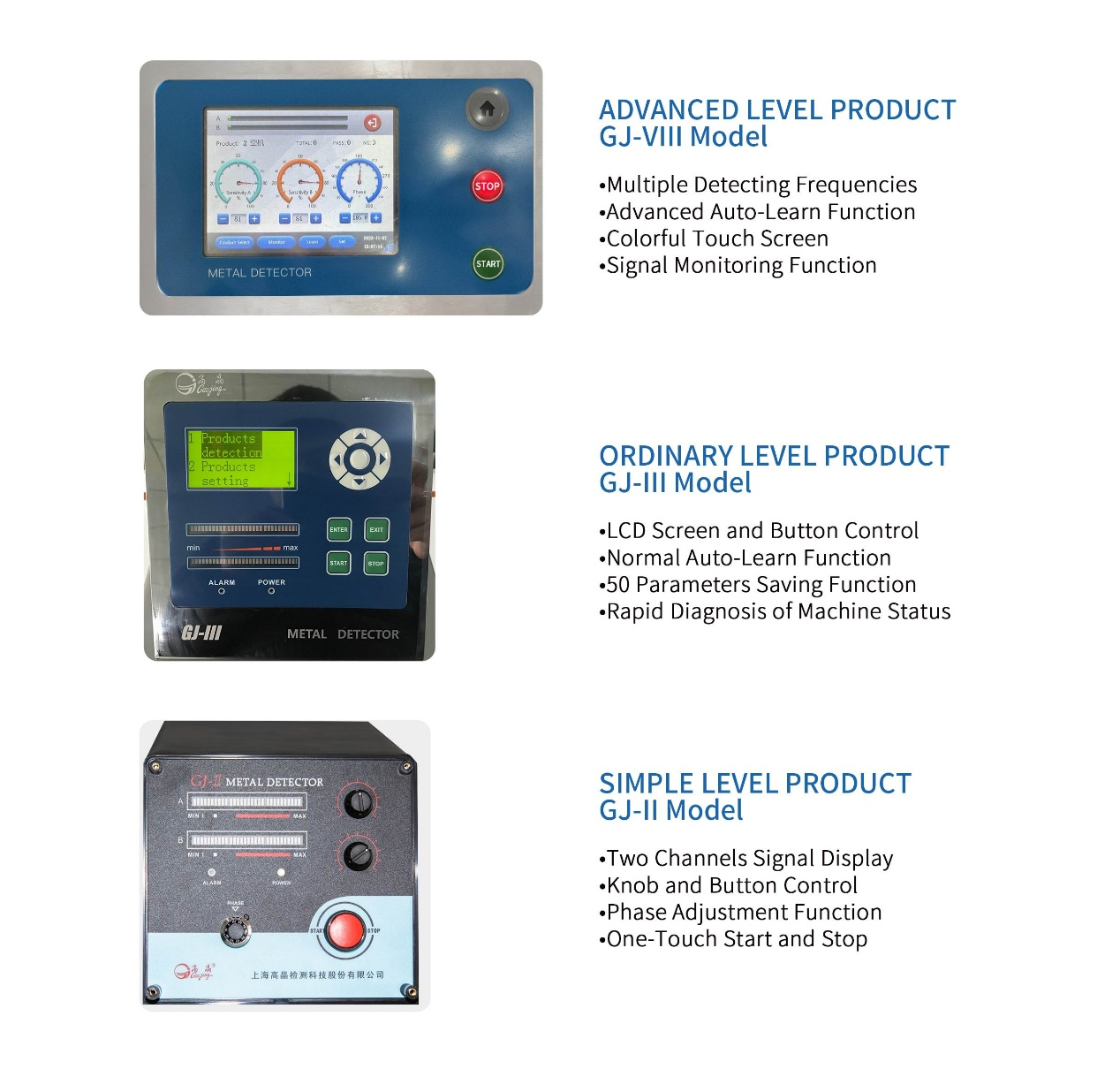

DIFFERENT LEVEL PRODUCTS AVAILABLE

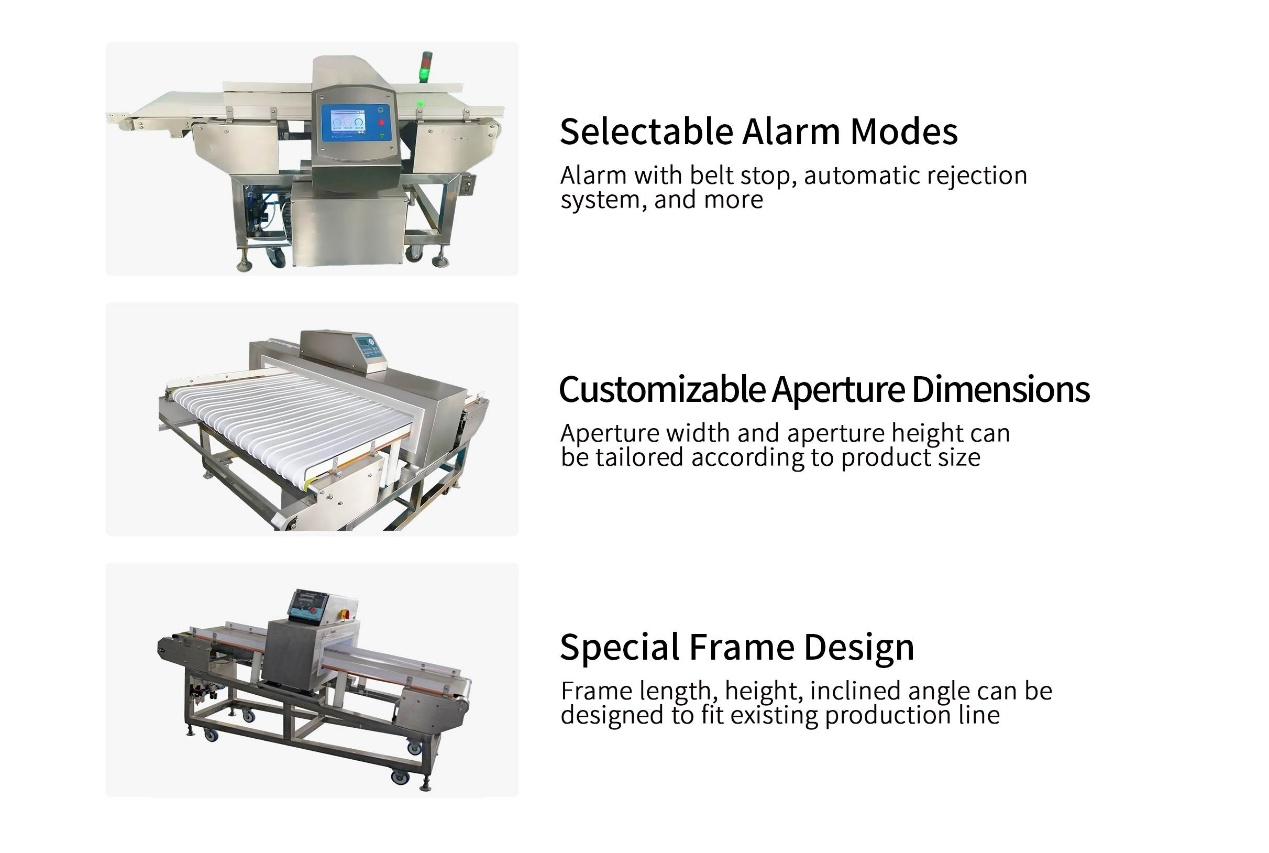

DIVERSIFIED CUSTOMIZATION AVAILABLE
